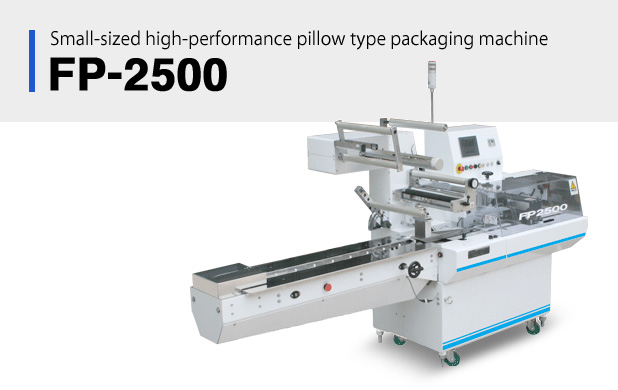

●Small size, high performance, servo motors mounted
Three servomotors are incorporated a compact body. The running sound is quiet, excellent in productivity and controllability. Space-saving design.
●Self-diagnostic function
If any failure should occur, operation is stopped automatically, and the trouble is warned by electronic buzzer and display, so that a quick counteraction can be taken.
●Free boxing device and suction belt included in standard equipment
Height and width can be adjusted easily only by handle manipulation.
Not having to guide by hand in empty bag state, a stable flow is obtained.
Three servomotors are incorporated a compact body. The running sound is quiet, excellent in productivity and controllability. Space-saving design.
●Self-diagnostic function
If any failure should occur, operation is stopped automatically, and the trouble is warned by electronic buzzer and display, so that a quick counteraction can be taken.
●Free boxing device and suction belt included in standard equipment
Height and width can be adjusted easily only by handle manipulation.
Not having to guide by hand in empty bag state, a stable flow is obtained.
| Capacity | 20〜120pack／min |
|---|---|
| Power Consumption | AC200V 3phases 5.5KVA 20A |
| Air supply | 500KPA 100NL/min |
| Machine size | L:2915mm W:835mm H:1900mm |
| Product size | L:80〜320mm W:20〜160mm H:10〜60mm |
| Packing material | Heat fusible film(MAX 450mm) |
| Max. film width | 450mm≧（product height + product wideh）×2＋40mm |
※Specification varies with the shape, dimensions and properties of the merchandise to be packaged, packaging materials, and other conditions.
