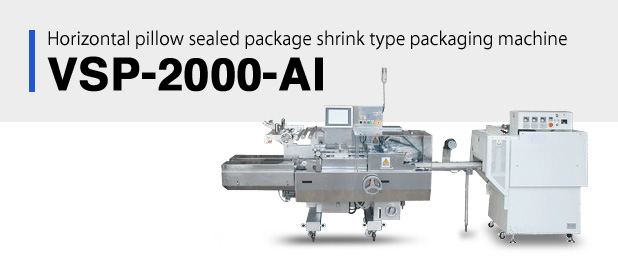

●Small size, high performance, servo motors mounted
Three servomotors are incorporated a compact body. The running sound is quiet, excellent in productivity and controllability. Space-saving design.
●Self-diagnostic function
If any failure should occur, operation is stopped automatically, and the trouble is warned by electronic buzzer and display, so that a quick counteraction can be taken.
●Open frame
The cleaning and the adjustment can be easily done because of the open frame structure.
●Automatic infeed conveyor standard model
By hooking up with a dish-up conveyor, products can be wrapped with timing being automatically adjusted.
Three servomotors are incorporated a compact body. The running sound is quiet, excellent in productivity and controllability. Space-saving design.
●Self-diagnostic function
If any failure should occur, operation is stopped automatically, and the trouble is warned by electronic buzzer and display, so that a quick counteraction can be taken.
●Open frame
The cleaning and the adjustment can be easily done because of the open frame structure.
●Automatic infeed conveyor standard model
By hooking up with a dish-up conveyor, products can be wrapped with timing being automatically adjusted.
| Capacity | 10〜60pack／min |
|---|---|
| Power Consumption | Pacaging machine：AC200V 3phases 5.1KVA 17A Shrink tunnel：AC200V 3phases 9KVA 30A |
| Air supply | 500KPA 100NL/min |
| Machine size | L:5000mm W:998mm H:1900mm |
| Product size | L:75〜500mm W:80〜160mm H:25〜60mm |
| Packing material | Heat fusible film(MAX 460mm) |
| Max. film width | 460mm≧（product height + product wideh）×2＋40mm |
※Specification varies with the shape, dimensions and properties of the merchandise to be packaged, packaging materials, and other conditions.
